Attachments
Brokk attachments

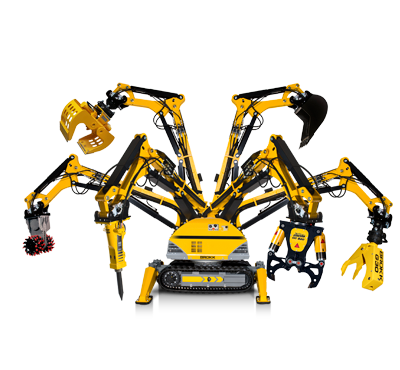

Brokk robotic demolition machines can be equipped with an extremely large and diverse selection of tools or attachments as more commonly known which make the Brokk even more efficient and flexible. Our most highly used attachments are the concrete crusher, the hydraulic breaker and the bucket. We also have various sorting grapples, scabblers and drilling tools available.
The Brokk, equipped with different attachments instantly becomes more profitable for your company. Below is our current range of original Brokk attachments and we are also regularly adding to this current range.
Breakers
Hitting power*
Blows/min
Weight
Made for
SB 52
SB 152
SB 202
SB 302
SB 452
SB 552
101 J/Nm
254 J/Nm
406 J/Nm
610 J/Nm
855 J/Nm
1048 J/Nm
960 – 1700
840 – 1900
850 – 1800
600 – 1400
550 – 1250
650 – 1150
55 kg/121 lbs
140 kg/309 lbs
200 kg/441 lbs
310 kg/683 lbs
441 kg/972 lbs
520 kg/1 146 lbs
Brokk 60
Brokk 100, 120D, 160
Brokk 160
Brokk 280
Brokk 400, 800
Brokk 400
*Actual output, impact energy class (Joule/Nm)
A variety of chisels and tools can be fitted to the breakers. Other breaker brands can also be
used on Brokk machines. Contact your local Brokk dealer or Brokk AB for information.
Concrete crushers**
Jaw opening
Rebars
Crushing force
Weight
Made for
CC260
CC320
CC340
CC420
CC430*
CC520*
CC560
CC700*
250 mm/9.8 in
320mm/13 in
343 mm/14 in
420mm/17 in
431 mm/17 in
540 mm/21 in
550mm/22 in
650 mm/26 in
Ø16 mm/0.6 in
Ø20 mm/0.8 in
Ø30 mm/1.2 in
Ø28 mm/1.1 in
Ø30 mm/1.2 in
Ø30 mm/1.2 in
Ø28 mm/1.1 in
Ø30 mm/1.2 in
220 kN/22 t/49 Klbf
320 kN/33 t/72 Klbf
360 kN /37 t/81 Klbf
402kn/41 t/91 Klbf
382 kN/39 t/86 KIbf
466 kN/48 t/105 Klbf
510kn/52 t/115 Klbf
680 kN/69 t/153 Klbf
82 kg/181 lbs
150 kg/330 lbs
160 kg/353 lbs
265 kg/584 lbs
265 kg/584 lbs
407 kg/897 lbs
490 kg/1080 lbs
610 kg/1345 lbs
Brokk 60
Brokk 100, 120D
Brokk 160
Brokk 280
Brokk 400, 800
*Option pulverizing pads
**Free rotation
Width
330 mm/13 in
520 mm/20.5 in
690 mm/27.2 in
930 mm/36.6 in
Weight
20 kg/44 lbs
61 kg/134 lbs
76 kg/168 lbs
195 kg/430 lbs
Made for
Brokk 60
Brokk 100, 120D
Brokk 160
Brokk 280, 400, 800
Buckets*
Volume
20 l/0.7 cu ft
60 l/2.1 cu ft
80 l/2.8 cu ft
250 l/8.8 cu ft
Brokk 60
Brokk 100, 120D
Brokk 160
Brokk 280, 400, 800
*See load diagram for each Brokk machine
Clamshell buckets*
Volume
Opening range
Width
Weight
Made for
C02H-25
C03H-35
C05H-40
C05HPX-60
C08HPX-80
25 l/0.9 cu ft
65 l/2.3 cu ft
115 l/4.1 cu ft
170 l/6.0 cu ft
300 l/10.6 cu ft
725 mm/28.5 in
880 mm/34.6 in
1090 mm/42.9 in
1110 mm/43.7 in
1250 mm/49.2 in
250 mm/9.8 in
350 mm/13.8 in
400 mm/15.7 in
600 mm/23.6 in
800 mm/31.5 in
110 kg/243 lbs
175 kg/386 lbs
210 kg/463 lbs
375 kg/827 lbs
580 kg/1 279 lbs
Brokk 100, 120D
Brokk 160
Brokk 280
Brokk 400
Brokk 800
*See load diagram for each Brokk machine
Rotator with continuous rotation
Requires one extra hydraulic function
Multi purpose grapples*
Volume
Opening range
Width
Weight
Made for
A02H-30
A03H-40
A05HPX-40
A09HPX-50
35 l/1.2 cu ft
70 l/2.5 cu ft
100 l/3.5 cu ft
200 l/7.1 cu ft
835 mm/32.9 in
1475 mm/58.1 in
1400 mm/55.1 in
1650 mm/65 in
300 mm/11.8 in
390 mm/15.4 in
400 mm/15.7 in
500 mm/19.7 in
152 kg/335 lbs
285 kg/628 lbs
410 kg/904 lbs
675 kg/1 488 lbs
Brokk 100, 120D, 160
Brokk 280
Brokk 400
Brokk 800
Orange Peel Grapple
KM651-4 180
KM651-4 250
180 l/6.4 cu ft
250 l/8.8 cu ft
1450 mm/57.1 in
1550 mm/61 in
1070 mm/42.1 in
1285 mm/50.6 in
520 kg/1146 lbs
870 kg/1918 lbs
Brokk 400
Brokk 800
*See load diagram for each Brokk machine
Requires one extra hydraulic function
Rotator with continuous rotation
Sorting & demolition grapples*
Jaw opening
Weight
Made for
G30
G50
D02H-30
D03HPX-40
D05HPX-50
D09HPX-60
300 mm/11.8 in
400 mm/15.7 in
790 mm/31.1 in
975 mm/38.4 in
1135 mm/44.7 in
1400 mm/55.1 in
42 kg/93 lbs
140 kg/309 lbs
133 kg/293 lbs
310 kg/683 lbs
400 kg/882 lbs
595 kg/1 312 lbs
Brokk 60
Brokk 100, 120D, 160
Brokk 100, 120D, 160
Brokk 280
Brokk 400
Brokk 800
*See load diagram for each Brokk machine
Requires one extra hydraulic function
Rotator with continuous rotation
Scabblers
ER 100****
Cutting depth**
0-65 mm/0-2.6 in
Width
610 mm/24 in
Weight
345 kg/761 lbs
Made for
Brokk 160, 280, 400, 800
****Requires drainage hose
Drilling equipment***
Length
Drill
diameters
Drill steel
size
Max. stroke
length***
Weight
Made for
TE 160-100
1910 mm/75.2 in
33 – 42mm
1.3 – 1.7 in
R25
1000 mm/
3.3 ft
225 kg/
496 lbs
Brokk 100, 120D, 160
*Extension rod drilling
**Per stroke with open centerlizer
***Requires drainage hose, cable kit, counter weight in some occations, water or airflushing
Beam grapple*
Brokk Beam
Grapple
Jaw opening
250 mm/9.8 in
Beam weight
B280: 90 kg/198 lbs
B400: 500kg/1 102 lbs
B800: 500 kg/1 102 lbs
Weight
320 kg/705 lbs
Made for
Brokk 280, 400, 800
*Requires load holding valves with hose burst function
Requires two extra hydraulic functions
Shot crete*
Brokk Shot
Crete
Concrete
hose (di)
45 mm/
1.8 in
Gunning pressure
Depend on
concrete pump
Air pressure
Depend on
concrete pump
Weight
180 kg/397 lbs
Made for**
Brokk 280, 400, 800
*Requires two extra hydraulic functions
**Other models on request
Cut off saw*
Saw disk
diameter**
Cutting
depth***
Weight
Made for
170 mm/7 in
170 mm/7 in
260 mm/10 in
260 mm/10 in
62 kg/137 lbs
65 kg/143 lbs
192 kg/423 lbs
195 kg/430 lbs
BCS 8
BCS 10
BCS 25****
BCS 35****
400 mm/16 in
400 mm/16 in
800 mm/31 in
800 mm/31 in
Brokk 60
Brokk 100, 120D, 160
Brokk 160
Brokk 280, 400, 800
*Requires one extra hydraulic function
**Different saw disks available depending on material
***With new saw disk
****Requires drainage hose
Splitters
Length****
Drill hole
diameter
Splitting force
theoretical
Total
weight****
Made for
C20 V**
C20 H***
C20 J**
1833 mm/72 in
1790 mm/70 in
2110 mm/83 in
76 mm/3 in
76 mm/3 in
76 mm/3 in
14 760 kN-17 660 kN/
1 500 t-1 800 t
14 760 kN-17 660 kN/
1 500 t-1 800 t
14 760 kN-17 660 kN/
1 500 t-1 800 t
455 kg/1 003 lbs
460 kg/1014 lbs
440 kg/970 lbs
Brokk 280*–400
Brokk 280*–400
Brokk 280*–400
*Require counter weight
**Requires one extra hydraulic function
***Requires two extra hydraulic functions
****Value without wedge set. Value without mounting kit
*****With mounting kit and wedge set
