BROKK COMPARISON CHART
Brokk comparison chart
Weight
Width min
Height min
Motor output
Recommended
max weight
attachment
Vertical reach
(incl. breaker)
Horizontal reach
(incl. breaker)
Brokk 40
384 kg
(846 lbs)
600 mm
(23.6 in)
940 mm
(37 in)
0-4 kW
50 kg
(110 lbs)
2.9 m
(9.51 ft)
2.3 m
(7.5 ft)
> Easy to transport > Ideal for breaking screed > 32amp 3 phase supply.
Brokk 50
500 kg
(1102 lbs)
590 mm
(23.2 in)
940 mm
(37 in)
0-5.5 kW
70 kg
(154 lbs)
3.1 m
(10.2 ft)
2.5 m
(8.2 ft)
> SB52 hammer > 6 times more efficient than handheld equipment > Can be transported in elevators.
Brokk 60
500 kg
(1102 lbs)
590 mm
(23.2 in)
874 mm
(34.4 in)
0-6 kW
80 kg
(176 lbs)
3.1 m
(10.2 ft)
2.5 m
(8.2 ft)
> Easy access through small doorways > Ideal for indoor and weak floors > 32amp 3 phase supply.
Brokk 90
980 kg
(2160 lbs)
780 mm
(30.7 in)
1210 mm
(47.6 in)
0-11 kW
150 kg
(331 lbs)
4.3 m
(14.1 ft)
3.7 m
(12.1 ft)
> One of the most versatile machines available > Folds into a compact package > Perfect for jobs in the metal processing industry.

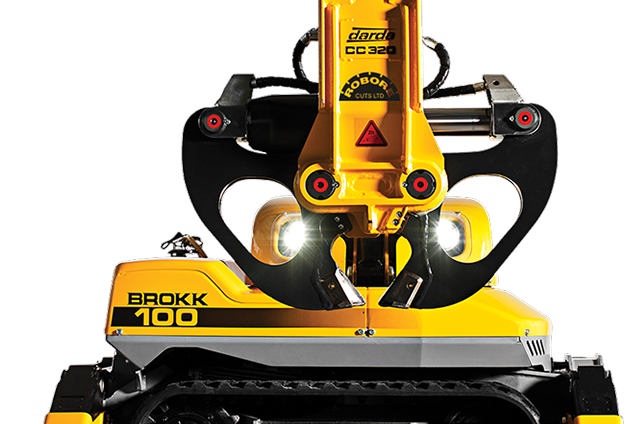

Brokk 100
990 kg
(2183 lbs)
780 mm
(30.7 in)
1147 mm
(45.2 in)
0-15 kW
150 kg
(331 lbs)
4.3 m
(14.1 ft)
3.7 m
(12.1 ft)
> Unparalleled stability > Can be transported in a van > Ideal for restricted places.
Brokk 160
1600 kg
(3527 lbs)
780 mm
(30.7 in)
1254 mm
(49.4 in)
0-18 kW
270 kg
(595 lbs)
4.8 m
(15.7 ft)
4.4 m
(14.4 ft)
> Over 410 joules at the tip > State of the art digital remote > 63amp 3 phase supply.
Brokk 180
1930 kg
(4255 lbs)
1100 mm
(43.3 in)
1392 mm
(54.8 in)
0-18.5 kW
270 kg
(595 lbs)
4.9 m
(16.1 ft)
4.5 m
(14.8 ft)
> Remarkable hitting power and stability > Has track-widening kit > Small size and great strength.
Brokk 280
3150 kg
(6945 lbs)
1200 mm
(47.2 in)
1530 mm
(60.2 in)
0-22 kW
420 kg
(926 lbs)
6.2 m
(20.3 ft)
5.8 m
(19 ft)
> Outstanding all round demolition versatility > New intelligent electrical system > Rugged and robust.
Brokk 330
4500 kg
(9921 lbs)
1500 mm
(59.1 in)
1660 mm
(65.4 in)
0-30 kW
550 kg
(1213 lbs)
6.4 m
(21 ft)
6.8 m
(22.3 ft)
> Outperforms conventional excavators > Impressive power to weight ratio > 63amp 3 phase supply.
Brokk 400
5100 kg
(11244 lbs)
1600 mm
(63 in)
1792 mm
(70.6 in)
0-36 kW
600 kg
(1323 lbs)
7.1 m
(23.3 ft)
6.7 m
(22 ft)
> Reaches almost 7 metres > Can handle tools up to 600kg > Productive in open spaces.
Husqvarna comparison chart
Weight
Width min
Height min
Motor output
Recommended
max weight
attachment
Vertical reach
(incl. breaker)
Horizontal reach
(incl. breaker)
DXR 140
985 kg
771 mm
854 mm
15 kW
150 kg
4.4 m
3.7 m
> Smallest, lightest member of the robots > Operates in cramped spaces > 15kw output.
DXR 250
1620 kg
780 mm
1422 mm
18 kW
230 kg
4.7 m
4.3 m
> Works off bluetooth or cable > Takes a SB202 hammer > Up to 100 metre range.
DXR 310
1960 kg
780 mm
1035 mm
22 kW
270 kg
5.2 m
4.9 m
> Has telescopic arm for extra reach > Outrigger legs for stability > 63amp 3 phase power supply.
Brokk / Husqvarna ranges
- Machine weight including standard hammer divided by area enclosed by outrigger support points.
- Machine weight including standard hammer divided by track contact surface.
- Max point load measured at tip over load.
Brokk floor capacity load
Note: all values are static loads - numbers are subject to change without notice. Please consult
with the engineer at the site - Robore Hire assumes no liability for accidents.
